The Quick Answer (30 Seconds)
Hydrogen water bottles work through electrolysis. When you press the button, electricity splits water (H₂O) into hydrogen and oxygen gases. The bottle keeps the hydrogen, dissolves it into your water under pressure, and vents out the oxygen. After 5-10 minutes, you have water infused with 5-8 PPM (parts per million) of molecular hydrogen. The entire process is controlled by a microprocessor and powered by a rechargeable battery.
Think of it as: how sparkling water gets its fizz. A gas, carbon dioxide, is forced into the water, creating bubbles and a tangy taste.[1] A hydrogen water bottle does something similar, but with a different gas and a different method.
How It Works: Visual Overview
Figure 1: Complete hydrogen generation process in a typical hydrogen water bottle
The 5-Step Process
Fill
Add water
Activate
Press button
H2O Split
Electrolysis
Infuse
H₂ dissolves
Ready
Drink within 30min
Part 1: The Core Technology - Electrolysis Explained
What Is Electrolysis?
Electrolysis is the process of using electrical current to drive a chemical reaction that wouldn't occur naturally. In our bottles, we're forcing water molecules to split apart into their component gases.
Part 2: The Five Critical Systems Inside Every Bottle
System 1: Electrode Assembly
The Power Plant
- Titanium with 0.3μm platinum coating
- 12cm² active surface area
- Operates at 4.5V DC
- 15,000+ cycle lifespan
System 2: SPE/PEM Membrane
The Separator
- 180 micrometers thick PEM polymer
- 94% hydrogen selectivity
- Blocks harmful byproducts
- One-way door for H+ ions
System 3: Pressure Chamber
The Dissolver
- 1.2-1.5 atmospheres pressure
- Creates 50-100nm micro-bubbles
- 85% dissolution efficiency
- Triple-sealed design
System 4: Control Circuit
The Brain
- ARM Cortex-M0 processor
- Temperature monitoring
- Current regulation 0.8-1.2A
- Safety shutoff features
System 5: Power System
The Energy Source
- 2000mAh Li-polymer battery
- 8-10 cycles per charge
- USB-C rapid charging
- 800+ charge cycle lifespan
Electrode System Detail
Figure 2: Electrode system showing ion and electron flow during electrolysis
Part 3: The Step-by-Step Process Timeline
Let me walk you through exactly what occurs during a typical 5-minute cycle:
- Microprocessor awakens from sleep mode
- Conductivity test confirms water presence (>10 μS/cm)
- Pressure sensor verifies sealed chamber
- LED turns blue indicating start
- Power ramps up gradually to avoid electrode shock
- First hydrogen bubbles appear at cathode
- Oxygen forms at anode (behind membrane)
- Current stabilizes at 1.0 amps
- Hydrogen production rate: 0.4ml/minute
- Pressure builds to 1.4 atmospheres
- Micro-bubbles form and dissolve continuously
- Oxygen vents through exhaust port every 20 seconds
- Temperature rises by 5-8°C (monitored continuously)
- Dissolution rate equals production rate
- Water reaches 1.2-1.6 PPM hydrogen concentration
- Bubble size reduces to optimal 50-100nm
- System maintains steady-state operation
- Current gradually reduces to prevent pressure spike
- Final oxygen purge ensures no gas mixture
- Pressure normalizes to atmospheric
- LED turns green, audible beep sounds
- System enters standby mode
Understanding PPM / PPB
(Parts Per Million / Parts Per Billion)
Figure 3: Hydrogen concentration comparison between regular and hydrogen-infused water
Part 4: Performance Variables
Water Temperature Impact (unpressurised)
| Temperature | Efficiency | Hydrogen Output | Notes |
|---|---|---|---|
| 4°C (39°F) | 70% | 0.8-1.1 PPM | Reduced ion mobility |
| 20°C (68°F) | 100% | 1.2-1.6 PPM | Optimal performance |
| 30°C (86°F) | 95% | 1.1-1.5 PPM | Slightly reduced dissolution |
| 40°C+ (104°F) | N/A | System shuts off | Membrane protection mode |
Water Source Effects (unpressurised)
| Water Type | Conductivity | Performance | Hydrogen Output |
|---|---|---|---|
| Distilled | 50-200 μS/cm | Optimal | 1.2-1.6 PPM |
| Spring | 100-400 μS/cm | 95% | 1.1-1.5 PPM |
| Tap | 200-800 μS/cm | 90% | 1.0-1.4 PPM |
Part 5: Maintenance & Troubleshooting
- Water damage to base (38%) - Never submerge electronics
- High temperature water (22%) - Damages membrane irreversibly
- Impact damage (18%) - Cracks pressure seals
- Mineral buildup (12%) - Reduces efficiency
- Battery degradation (10%) - Normal after 800+ cycles
Professional Maintenance Schedule
📅 Daily
- Empty completely after each use
- Rinse with clean water
📅 Weekly
- Inspect membrane for discoloration
- Check seal integrity
- Clean exterior with damp cloth
📅 Monthly
- Deep clean with Ocemida's cleaning solution
- Run 3 cleaning cycles (1:10 cleaning solution to distilled water ratio)
- Rinse 3 times with distilled water
Complete Process Summary
Figure 4: The complete hydrogen water generation process from activation to ready-to-drink
Experience the Technology Yourself
Ready to explore our hydrogen water bottle technology? Our engineering team is here to answer your technical questions.
View Our Products Technical SupportFinal Technical Perspective
After a decade of engineering these systems, I can confirm that hydrogen water bottles represent sophisticated electrolysis technology miniaturized for consumer use. Every component—from the platinum electrodes to the microprocessor—works in precise coordination to safely generate and dissolve hydrogen gas into your drinking water.
Electrolysis Visual Demonstration
References
1. Electrolysis Wikipedia
2. The Science Behind Hydrogen Water. PubMed
3. Electrolysis of Water: An Overview. ScienceDirect
See MoreTable of Contents

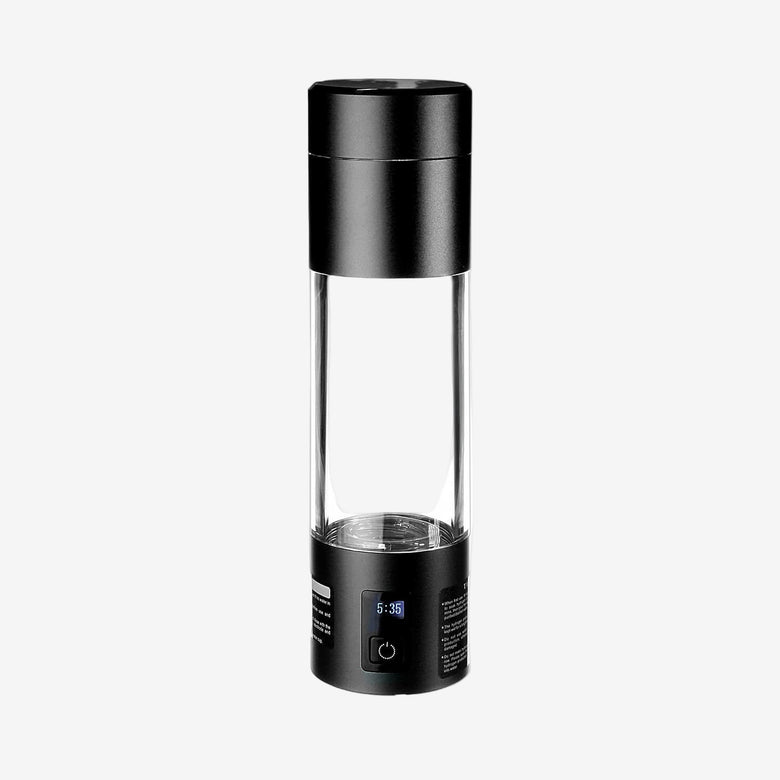

Recommended Product
